SK6812 Digital RGB LED Strip

Name: SK6812 Digital RGB LED Strip
Brand: m5stack-store
SKU: spq1787246651477
Price: 2.97 USD
Availability: InStock

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

(88 Reviews)

$2.97

$2.97 ~~$4.95~~

SAVE 40% Sold out

BUNDLE & SAVE

10cm-15LED

$2.97 $4.95

SK6812 Digital RGB LED Strip

$2.97

$2.97 ~~$4.95~~

SAVE 40% Sold out

Description

Unit RGB LED is a programmable light strip that uses SK6812 LEDs. This light strip supports digital addressing, meaning you can individually control the color and brightness of each LED on the strip. It uses a single-bus programming interface, allowing for the expansion of the light strip. Note that as the number of connected LEDs increases, so does the power consumption. Therefore, when using a Unit RGB LED strip with a large number of LEDs, an additional power supply is required.

Features

Available lengths: 10cm (15 LEDs) / 20cm (29 LEDs) / 0.5m (72 LEDs) / 1m (144 LEDs) / 2m (288 LEDs)
Development platforms: Arduino, UIFlow (Blockly, Python)
Expandable length

Includes

1 x Unit RGB LED

Specifications

Specification	Parameter
LED Model	SK6812 (3535)
Power	18W/m
Data Transfer Rate	800K/s
Operating Temperature	-40~80°C
Waterproof Level	Bare Board - Non-Waterproof
Product Size	10.0 x 100.0/10.0 x 200.0/10.0 x 500.0/10.0 x 1000.0/10.0 x 2000.0mm
Product Weight	4.0g/6.0g/10.0g/12.0g/34.0g
Package Size	138.0 x 93.0 x 8.0mm
Gross Weight	5.0g/7.0g/11.0g/13.0g/35.0g

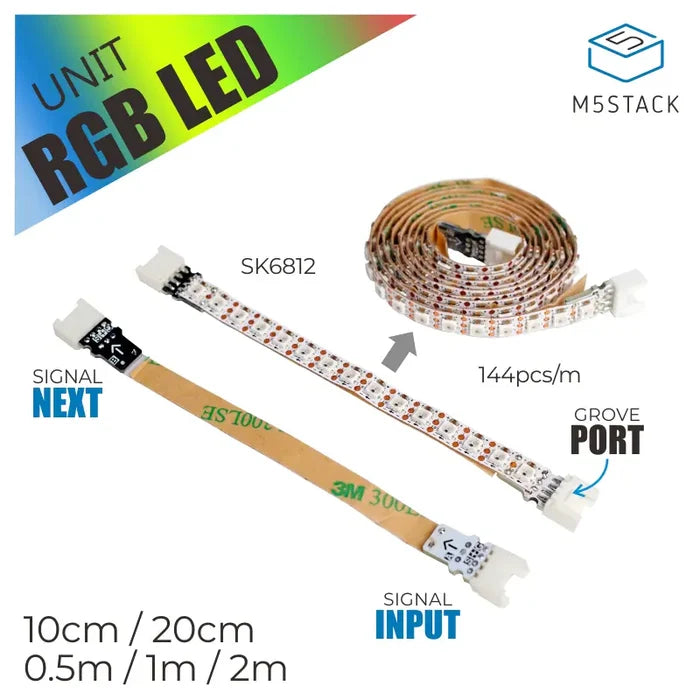

Signal Input/Output The white PCB at the end of the strip is the signal input (connected to the main controller), and the black PCB is used for extending the strip.
