RGB LED Unit (SK6812)

Description

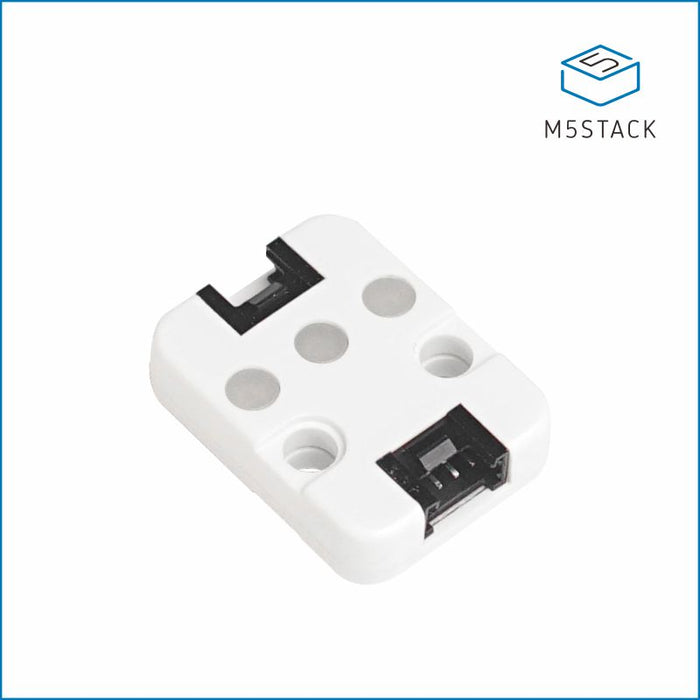

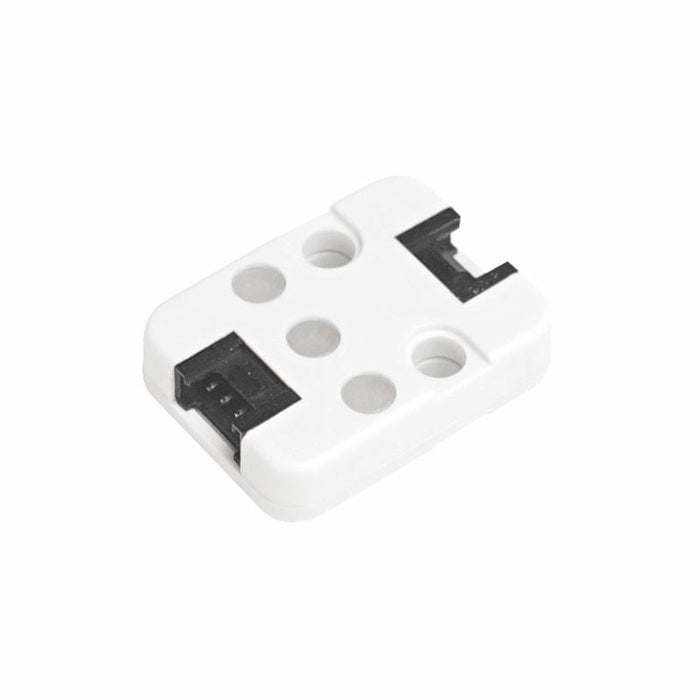

Unit RGB is a smart LED strip unit that integrates three SK6812 programmable RGB LEDs. Through programming, users can independently control the color and 256-level fine brightness of each LED to achieve rich lighting effects. Its unique daisy-chain design allows multiple units to be easily expanded, forming longer light strips or complex lighting arrays. The unit is equipped with LEGO-compatible mounting holes, making it convenient to install in various structures or projects. It is an ideal component for STEM education, light art, ambient lighting, and interactive installation creation.

Features

• 3 × SK6812 programmable RGB LEDs
• 256-level brightness adjustment

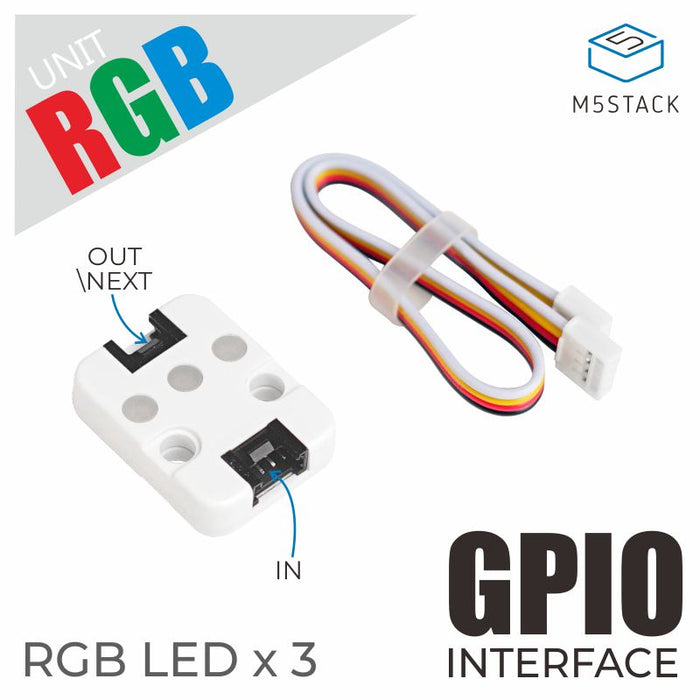

• Supports daisy-chaining multiple Unit RGB units for expansion
• 2 x LEGO-Compatible Mounting Holes
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE

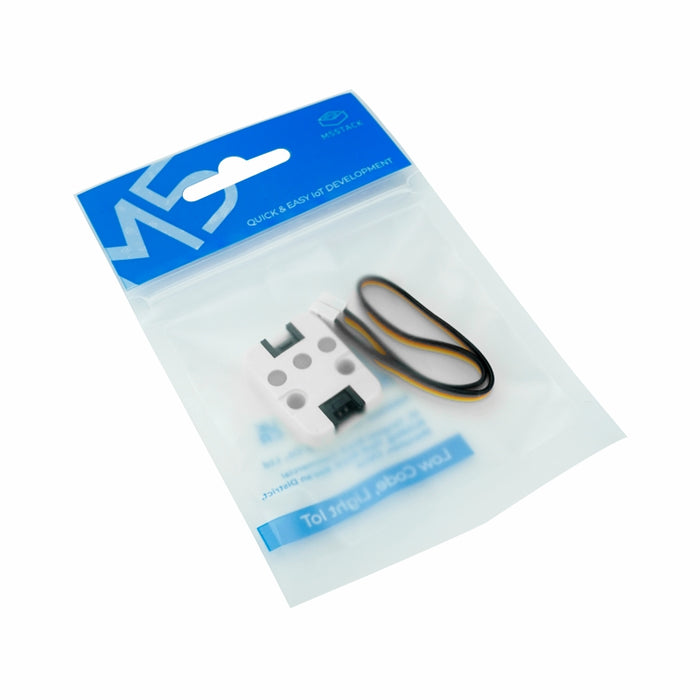

Includes

• 1 x Unit RGB
• 1 x HY2.0-4P Grove Cable (20cm)

Specifications

Specification	Parameter

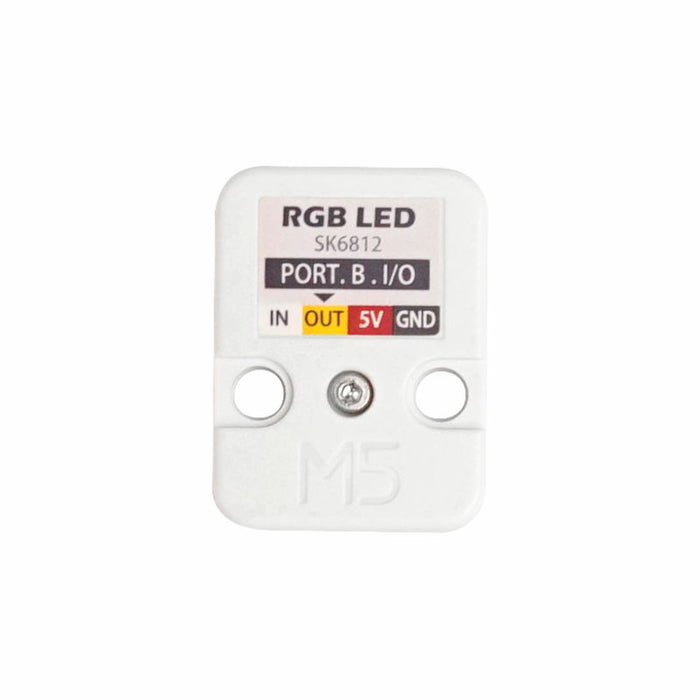

LED Model	SK6812 (3535)
Operating Voltage	DC 5V
LED Grayscale Adjustment	256 Levels

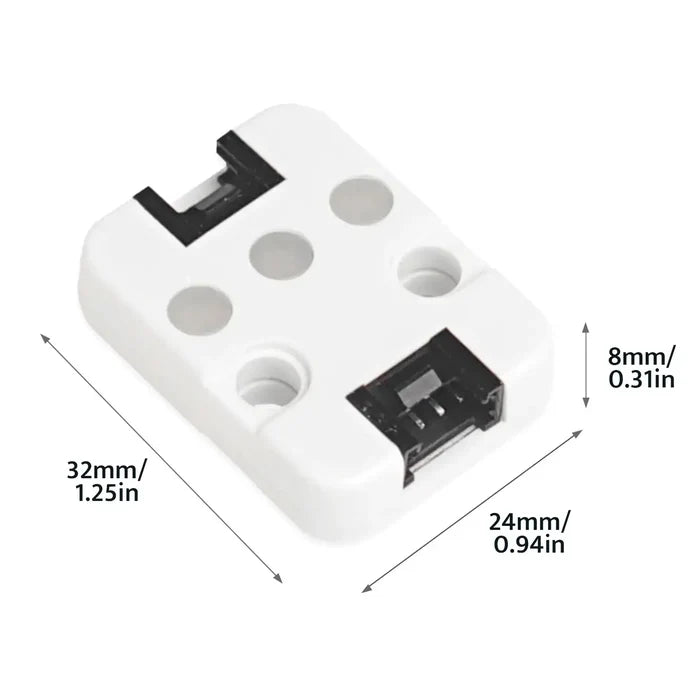

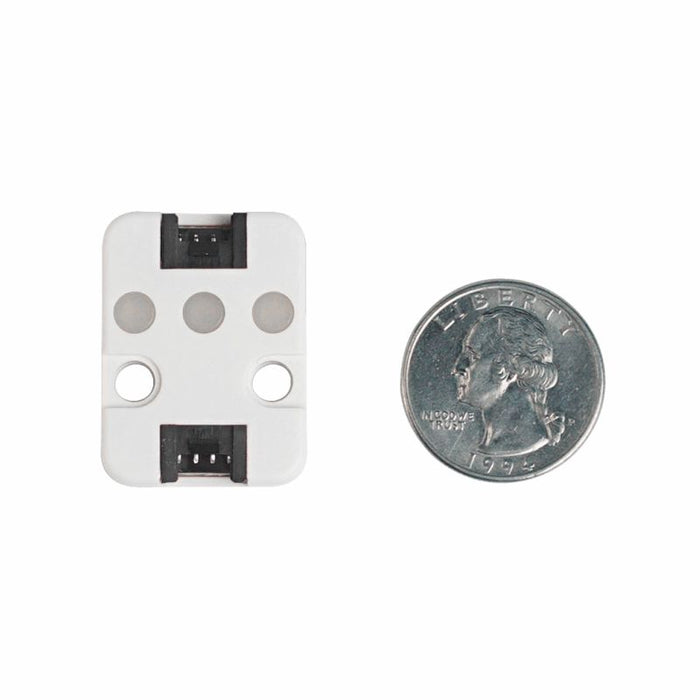

Product Size	32.0 x 24.0 x 8.0mm
Product Weight	4.6g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	10.0g
