This product is EOL.

Description

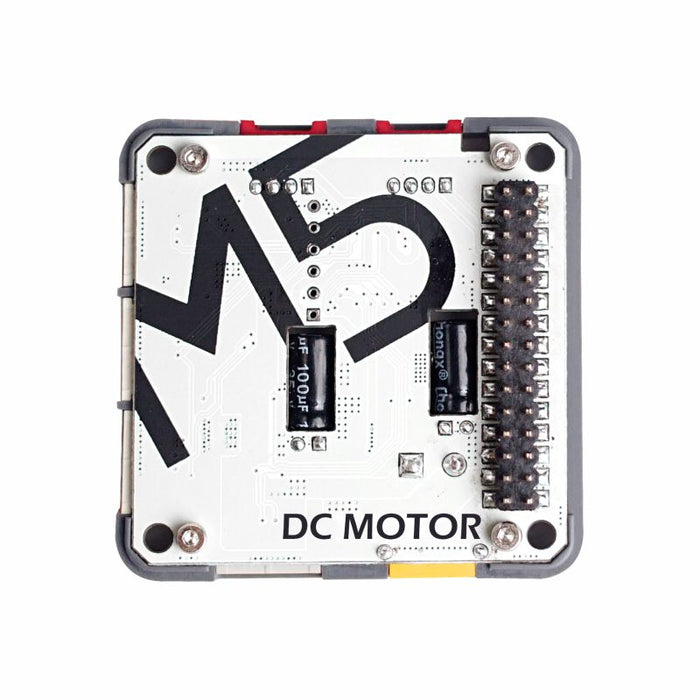

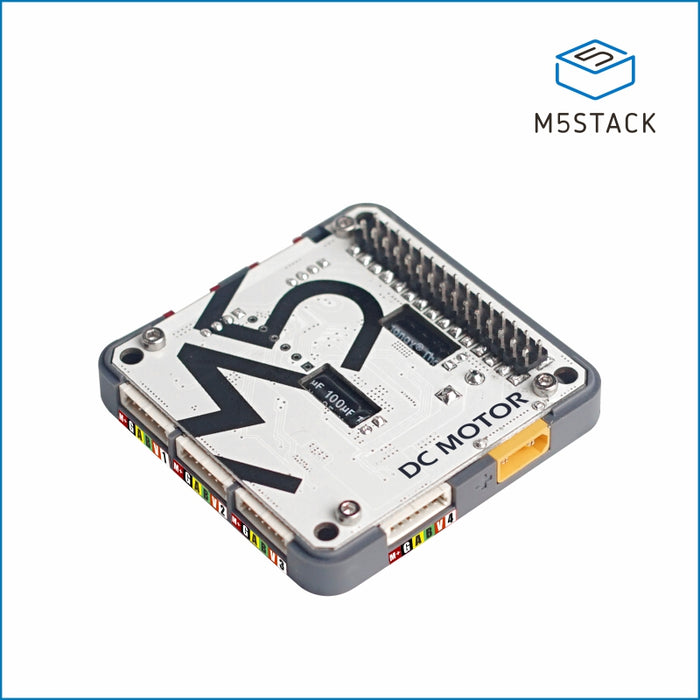

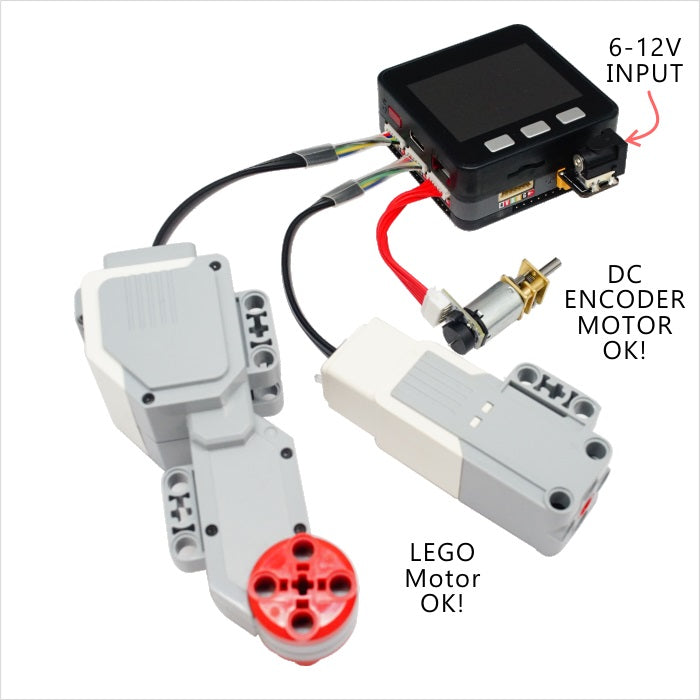

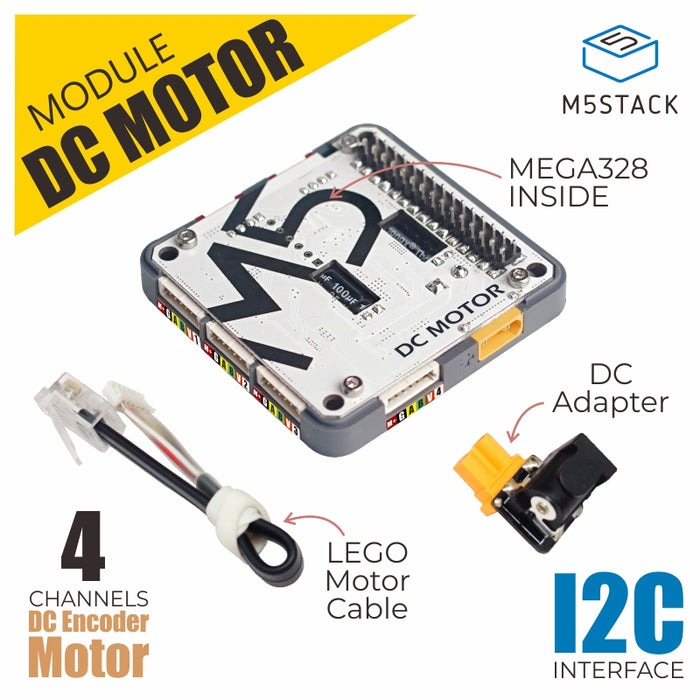

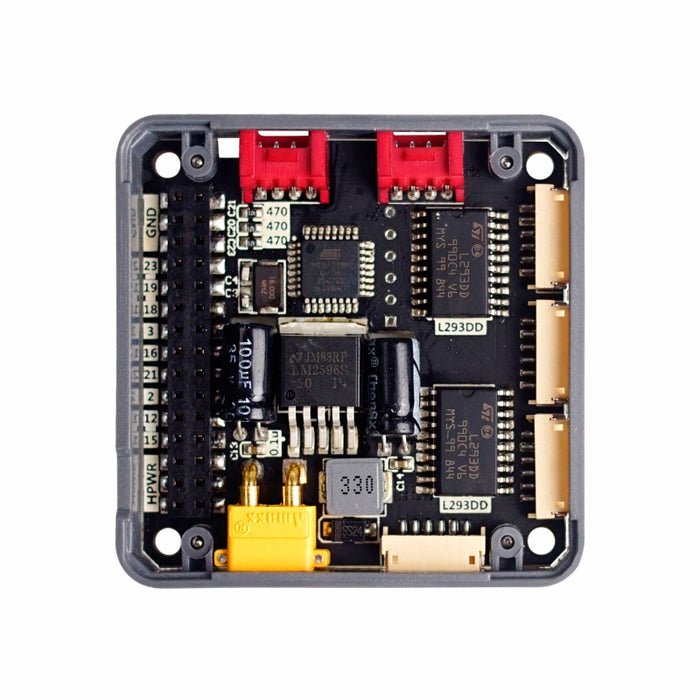

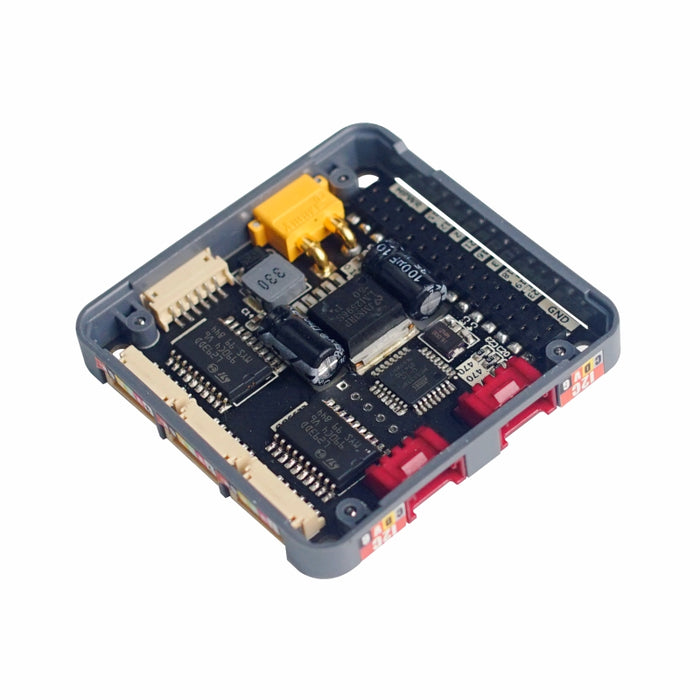

Module DCMotor is a DC motor driver module in the M5Stack stackable module series. It integrates the MEGA328 and L293DD chips, featuring 4 motor drive channels. It uses a DC power input design for power supply and automatically powers the M5Core on top via the M5-Bus. Using Module DCMotor, you can easily and quickly drive RJ12 interface encoder motors, such as LEGO EV3 motors (this product is not affiliated with or endorsed by LEGO, LEGO is a trademark of the LEGO Group).

Features

Communication Protocol: I2C (Address: 0x56)
DC Input: 6-12V
DC Connector Type: XT30 (female)
4 x Motor Drive Channels (compatible with LEGO EV3-RJ12 interface encoder motors)
2 x I2C HY2.0-4P interfaces (extended from the A port of M5Core)

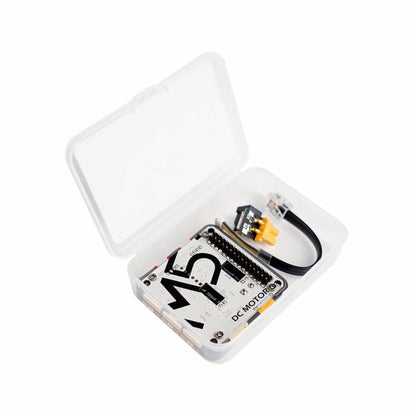

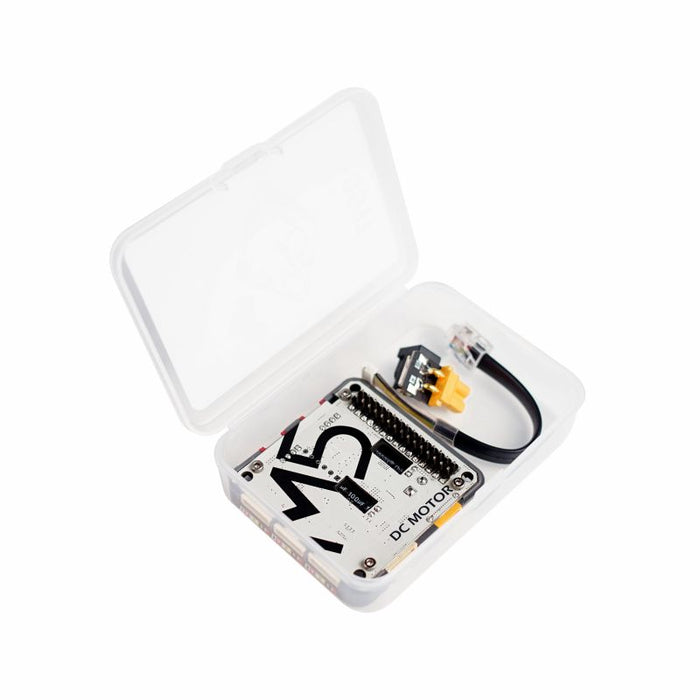

Includes

1 x Module DCMotor
1 x 10cm Motor Cable
1 x DC Power Connector

Specifications

Specification	Parameter
Communication Interface	I2C Communication @0x56
Motor Driver Chip	L293DD
Power Input Voltage	DC: 6-12V
Power Interface Spec	XT30 (female)
Motor Interface Spec	ZH1.5-6P
Net Weight	17g
Gross Weight	48g
Product Size	54 x 54 x 12mm
Package Size	95 x 65 x 25mm
Casing Material	Plastic (PC)
